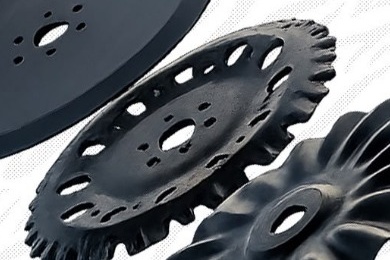

Cutaway / Notched Concave Disc Blade
SKU: HB-NCD-002
Shatterproof
High core elasticity absorbs rocky impacts without cracking.
Anti-Rust Protection
Electrostatic polymer powder coated for ocean export journeys.
Cutaway / Notched Concave Disc Blade
Recommended Applications
Engineering & Design Overview
The Hero Notched Concave Disc blade features precision laser-cut scallops that bite aggressively into hard, sun-baked soils and chop bulky crop residue without riding over the surface.
Equipped with uniform notch depth and bevel consistency, this blade prevents gang plugging in wet or heavy-trash field conditions.
Scallops are CNC cut before heat treatment to eliminate edge thermal stress and prevent micro-fracturing along notch roots during extreme stone impacts.
Key Engineering Features
- Aggressive scalloped cutting notches for heavy crop residue
- Full Boron 30MnB5 high fatigue resistance
- Precision balanced for vibration-free gang rotation
- Uniform notch radius prevents stress concentration
Technical Specifications
| Hardness | 48 – 52 HRC |
|---|---|
| Notch Count | 8, 10, 12, or 14 Scallops |
| Axle Fitment | Square 1-1/8", 1-1/4", 1-1/2", Round 40–50mm |
| Edge Profile | Inside Single Bevel / Full Machine Bevel |
| Diameter Range | 20" to 30" (510mm to 760mm) |
| Material Thickness | 4.5mm, 5.0mm, 6.0mm, 8.0mm |
Related Disc Blades Products
View Entire CategoryHeavy-Duty Plain Concave Disc Blade
Engineered for primary disc harrows and tandem tillage rigs, offering uniform curvature and consistent soil penetration across rocky and clay soils.

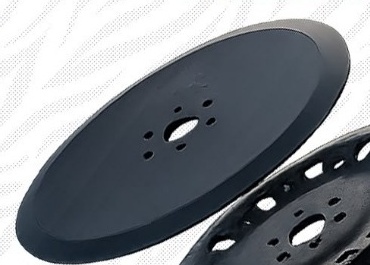

Heavy-Duty Plough Disc Blade
