Wavy & Fluted Turbo Specialty Disc Blade
SKU: HB-STD-006
Boron Steel 30MnB5
Continuous Automated Induction Quenched (48–52 HRC)
Shatterproof
High core elasticity absorbs rocky impacts without cracking.
Anti-Rust Protection
Electrostatic polymer powder coated for ocean export journeys.
Specialty Discs
Available on Order

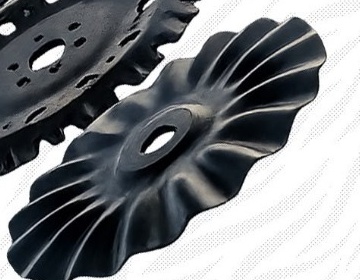

Wavy & Fluted Turbo Specialty Disc Blade
Fluted turbo discs designed for vertical tillage machines operating at high speeds (8–12 mph) without smearing the furrow base.
Pricing Structure
Request Commercial Quotation
Direct Factory OEM
Recommended Applications
High-Speed Vertical Tillage
Residue Management Rigs
Strip-Till Pre-Planting
Engineering & Design Overview
Hero Turbo Discs feature mathematically optimized flute angles that chop residue, fracture compacted layers, and mix soil lightly at speeds up to 12 mph without throwing soil sideways.
Manufactured with high-precision dies ensuring uniform wave pitch and symmetrical balance across the entire circumference.
Key Engineering Features
- High speed operation without furrow sidewall compaction
- Flute design drives soil rotation even in sticky soils
- Full Boron alloy durability
Technical Specifications
| Diameter | 18" to 26" (450mm to 660mm) |
|---|---|
| Hardness | 49 – 52 HRC |
| Thickness | 4.0mm, 5.0mm, 6.0mm |
| Flutes Count | 18, 20, 24, 28 Flutes |
